VCM型：

VCM系列X-life高速主軸軸承也擁有由陶瓷制成的滾珠，但其軸承套圈由新型高性能Vacrodur 材料制成。這種鋼材具有極高的承載能力、耐磨性和很高的耐熱性能，尤其是在潤滑不足或受到污染等潤滑不良的狀況下。與傳統的解決方案相比，VCM系列主軸軸承尤其能為電主軸提供全新的設計自由。

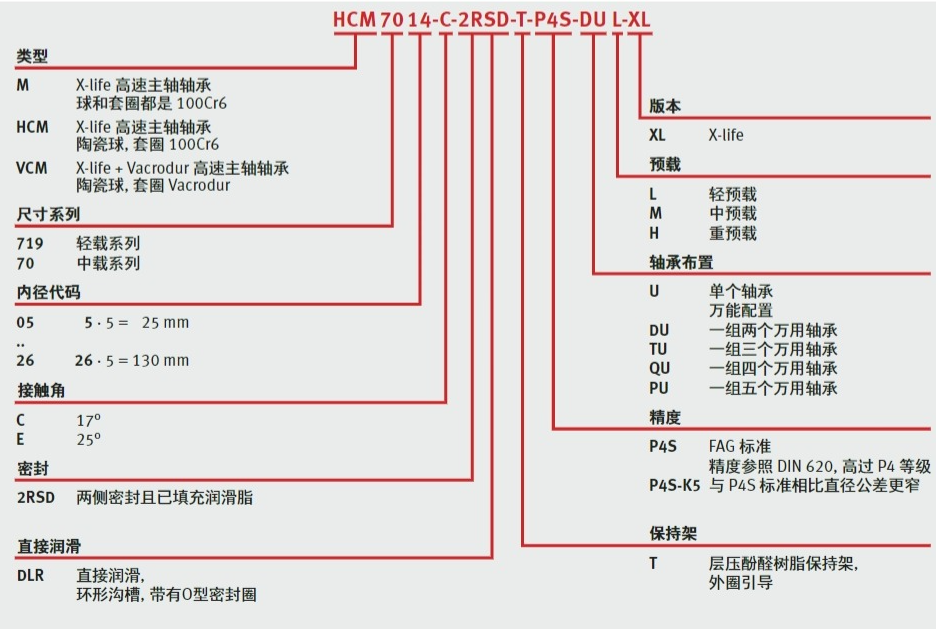

FAG M系列軸承型號字母釋義：

VCM:X-life+Vacrodur高速主軸軸承陶瓷球，套圈Vacrodur

C:接觸角17°

E:接觸角25°

T:層壓酚醛樹脂保持架，外圈引導

P4S:FAG標準，精度參照DIN620,高過P4等級

U:代表單個軸承***裝置

L:輕預載

XL:版本X-life

FAG  VCM系列主軸軸承型號推薦：

VCM71905C-T-P4S-UL-XL   VCM71905E-T-P4S-UL-XL   VCM7005C-T-P4S-UL-XL   VCM7005E-T-P4S-UL-XL

VCM71906C-T-P4S-UL-XL   VCM71906E-T-P4S-UL-XL   VCM7006C-T-P4S-UL-XL   VCM7006E-T-P4S-UL-XL

VCM71907C-T-P4S-UL-XL   VCM71907E-T-P4S-UL-XL   VCM7007C-T-P4S-UL-XL   VCM7007E-T-P4S-UL-XL

VCM71908C-T-P4S-UL-XL   VCM71908E-T-P4S-UL-XL   VCM7008C-T-P4S-UL-XL   VCM7008E-T-P4S-UL-XL

VCM71909C-T-P4S-UL-XL   VCM71909E-T-P4S-UL-XL   VCM7009C-T-P4S-UL-XL   VCM7009E-T-P4S-UL-XL

VCM71910C-T-P4S-UL-XL   VCM71910E-T-P4S-UL-XL   VCM7010C-T-P4S-UL-XL   VCM7010E-T-P4S-UL-XL

VCM71911C-T-P4S-UL-XL   VCM71911E-T-P4S-UL-XL   VCM7011C-T-P4S-UL-XL   VCM7011E-T-P4S-UL-XL

VCM71912C-T-P4S-UL-XL   VCM71912E-T-P4S-UL-XL   VCM7012C-T-P4S-UL-XL   VCM7012E-T-P4S-UL-XL

VCM71913C-T-P4S-UL-XL   VCM71913E-T-P4S-UL-XL   VCM7013C-T-P4S-UL-XL   VCM7013E-T-P4S-UL-XL

VCM71914C-T-P4S-UL-XL   VCM71914E-T-P4S-UL-XL   VCM7014C-T-P4S-UL-XL   VCM7014E-T-P4S-UL-XL

VCM71915C-T-P4S-UL-XL   VCM71915E-T-P4S-UL-XL   VCM7015C-T-P4S-UL-XL   VCM7015E-T-P4S-UL-XL

VCM71916C-T-P4S-UL-XL   VCM71916E-T-P4S-UL-XL   VCM7016C-T-P4S-UL-XL   VCM7016E-T-P4S-UL-XL

VCM71917C-T-P4S-UL-XL   VCM71917E-T-P4S-UL-XL   VCM7017C-T-P4S-UL-XL   VCM7017E-T-P4S-UL-XL

VCM71918C-T-P4S-UL-XL   VCM71918E-T-P4S-UL-XL   VCM7018C-T-P4S-UL-XL   VCM7018E-T-P4S-UL-XL

VCM71919C-T-P4S-UL-XL   VCM71919E-T-P4S-UL-XL   VCM7019C-T-P4S-UL-XL   VCM7019E-T-P4S-UL-XL

VCM71920C-T-P4S-UL-XL   VCM71920E-T-P4S-UL-XL   VCM7020C-T-P4S-UL-XL   VCM7020E-T-P4S-UL-XL

VCM71921C-T-P4S-UL-XL   VCM71921E-T-P4S-UL-XL   VCM7021C-T-P4S-UL-XL   VCM7021E-T-P4S-UL-XL

VCM71922C-T-P4S-UL-XL   VCM71922E-T-P4S-UL-XL   VCM7022C-T-P4S-UL-XL   VCM7022E-T-P4S-UL-XL

VCM71924C-T-P4S-UL-XL   VCM71924E-T-P4S-UL-XL   VCM7024C-T-P4S-UL-XL   VCM7024E-T-P4S-UL-XL

VCM71926C-T-P4S-UL-XL   VCM71926E-T-P4S-UL-XL   VCM7026C-T-P4S-UL-XL   VCM7026E-T-P4S-UL-XL
